Wecon
PLC

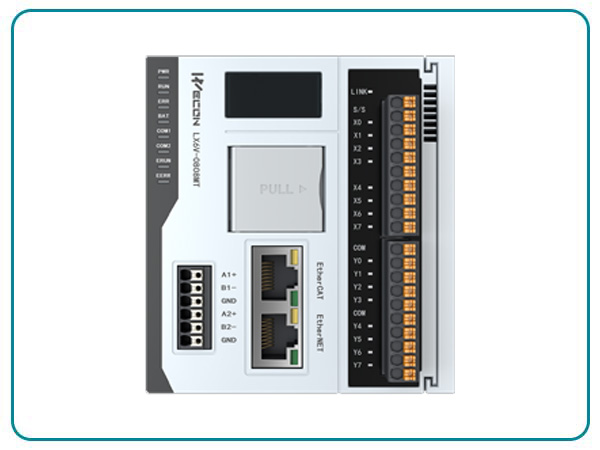

EtherCAT LX6V 0808MT PLC
- Supports EtherCAT and USB TYPE-C
- Supports IEC61131-3 LD programming mode, free-tag protocol, faster and more efficient communication
- 5MB large program capacity
- 512KB latched capacity
- 100KB register capacity
- 5MB free tag capacity

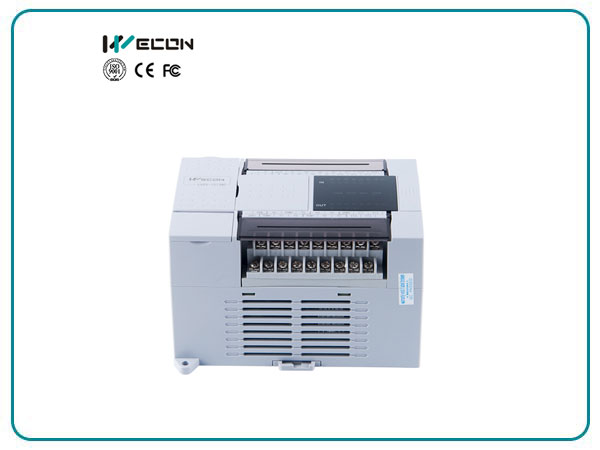

LX5V 1412MT PLC
- Fastest: 0.01us~0.03us execution speed;
- Support larger program capacity: 48,000 steps;
- Supports the highest baud rate: 921600;
- Supports 8-channel external interrupt and supports rising and falling edges;
- Support 100us high speed timer interrupt;
- Supports up to 100 high-speed counting interrupts;
- Supports E-CAM;
- Supports electronic gear;
- Supports efficient and stable PID and CCPID auto-tuning;
- Supports IO module and LX 3V series analog module;
- upport LX 3V series BD modules (Communication BD module is not supported now).
HMI

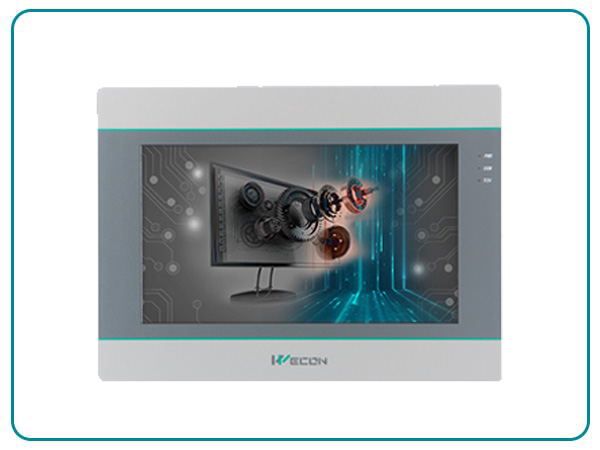

PI3070ig HMI
- CPU A35 1.2GHz, 128M Flash, 128M DDRAM
- Display:7 inches; Resolution: 800*480; Display color: 16,000k colors
- Interfaces: a serial port. COM1: RS232, RS422 or RS485(choose one of two), RS485.
- USB interfaces: USB Host/USB Client
- Remote monitoring and WVPN pass-through download.
- 3070ig-C supports related functions of V-NET, Ethernet pass-through download and sync data to cloud.
Servo

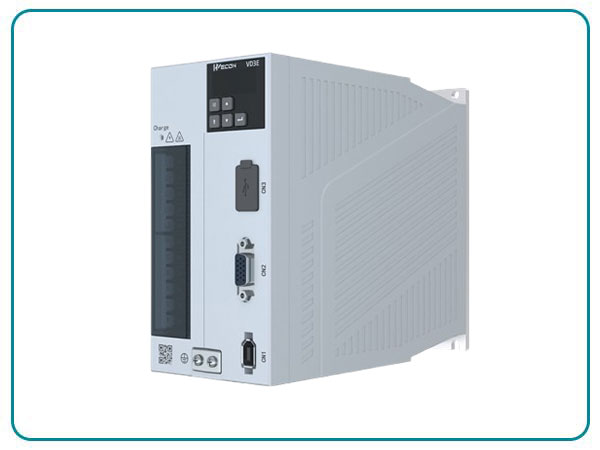

VD3E Series
- High performue CPU, 1ms high response
- EtherCAT High-speed Bus Control
- Real-time / High Precision/ Easy Wiring / Anti-interference
- LX6V PLC with EtherCAT port can connect up to 128pcs servos.
- Support Homing Mode and Cyclic Synchronous Position Mode

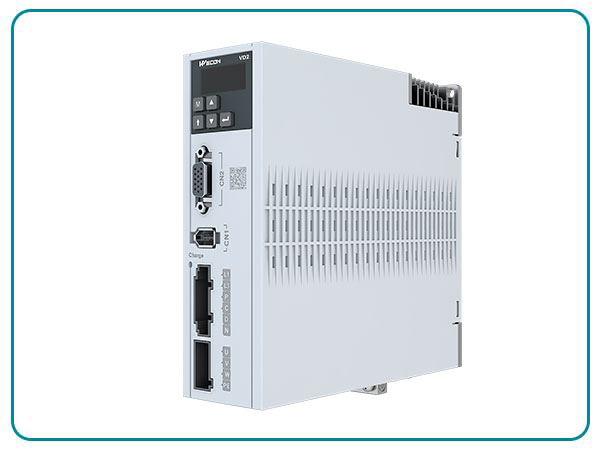

VD2F Series
- Economical and cost-effective
- Absolute Encoder supported
- Internal multi-stage speed command supported
- Internal multi-stage position command supported
- Brake output control supported

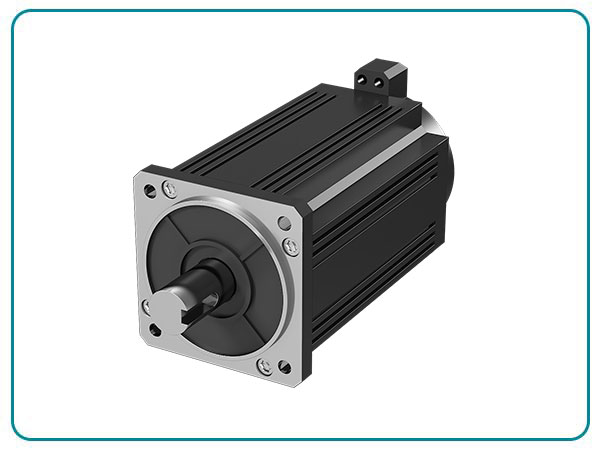

Servo Motor
- Cooling ensured: Integrated body design, better cooling system, better protection;
- Small size: The split encoder is adopted to significantly reduce the size of the motor;
- High working temperature: N38SH grade magnetic steel can work as high as 150℃. H grade enamel insulated wire is used and the insulation temperature is up to 180℃;
- Good components: Raw materials of international brand is used and high-quality,certificated trade companies are supplied to ensure the quality and stability of products.
V Box

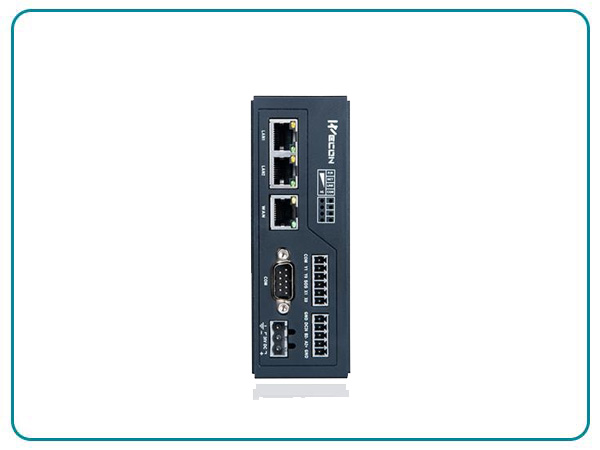

V-BOX H Series
V-BOX is a device for use in remote debugging, web scada, API interface, app monitoring.
- Get data via RS-232 / RS-485 / Ethernet communication, offer Modbus RTU / Modbus TCP communication.
- Supports communication protocols of the main brands of PLC, frequency inverters, network analyzers, among others.
- Connects to the cloud platform through Ethernet, Wifi, 4G connectivity.
- Remote monitoring with upload and download option of PLC programming (Wecon).
- Offers WVPN for remote connection to different PLC brands.
- OPC access.
- Development of Scada in the cloud.
- Datalogger and download of data, alarms and history directly to Excel.
- Access available from mobile devices through the V-Box app (Android / IOS)

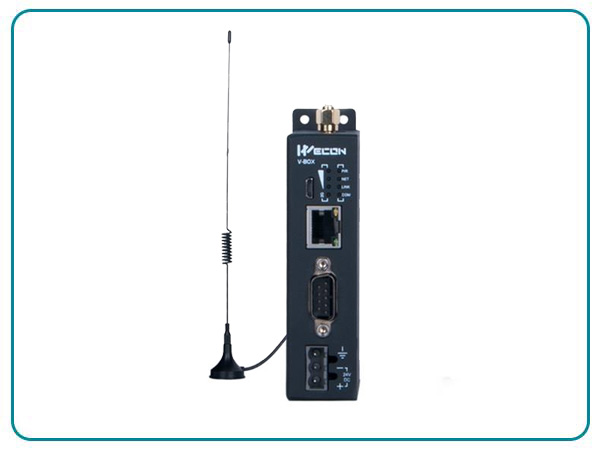

V-BOX E SERIES
V-BOX is a device for use in remote debugging, web scada, API interface, app monitoring.
- Get data via RS-232 / RS-485 / Ethernet communication, offer Modbus RTU / Modbus TCP communication.
- Supports communication protocols of the main brands of PLC, frequency inverters, network analyzers, among others.
- Connects to the cloud platform through Ethernet, 4G connectivity.
- Remote monitoring with upload and download option of PLC programming (Wecon).
- Serial Port Pass-through to realize PLC remote debugging or download
- OPC access.
- Development of Scada in the Cloud.
- Datalogger and download of data, alarms and history directly to Excel.
- Access available from mobile devices through the V-Box app (Android / IOS)
